PC U Sealer

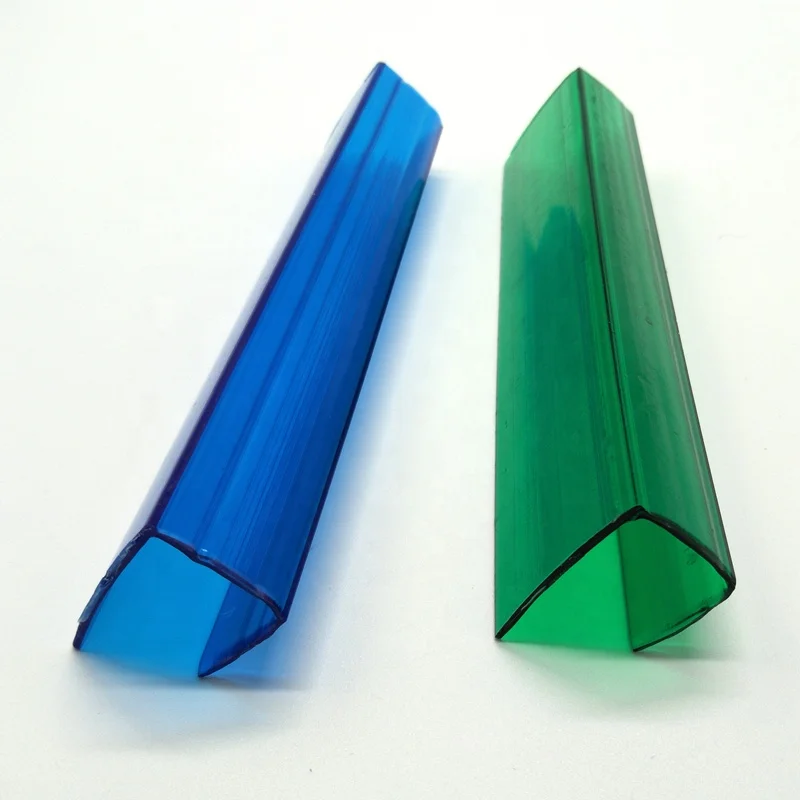

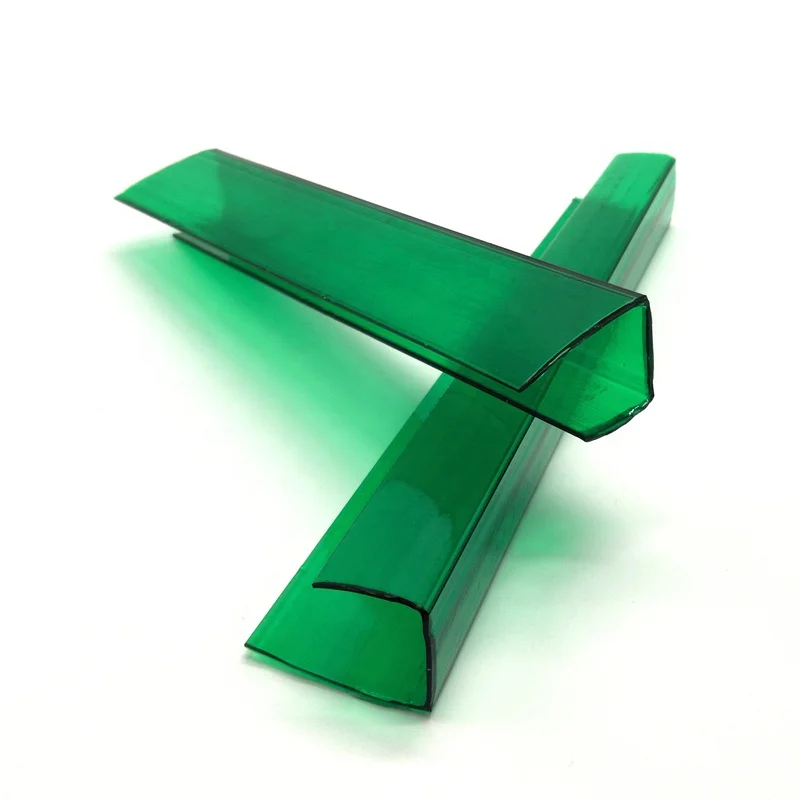

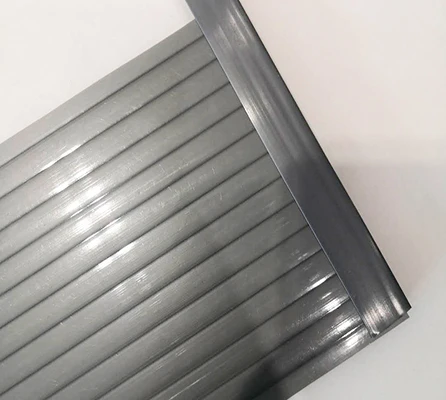

PC H or U profiles is widely used in installation. H profile is used in connection so that the sheets are connected better,but also can effectively prevent the sheet broken when make holes in the sheet and U profile is used to close the end of sheet for waterproof. It is designed for 6m long. Any length can be ordermade. The sheet can be 4mm-16mm thickness.
- Overview
- Features
- Recommended Products
Item |
Thickness (mm) |
Length |
Weight g/pcs |
PC H profiles |
6 |
6 |
540 |
8 |
6 |
720 |
|
10 |
6 |
780 |
|
12 |
6 |
960 |
|
16 |
6 |
1110 |
|
PC U profiles |
6-8 |
6 |
240 |
10 |
6 |
280 |
|
12 |
6 |
300 |
|
14 |
6 |
360 |
|
16 |
6 |
390 |
|
20 |
6 |
780 |
Product Introduction
PC H or U profiles is widely used in installation. H profile is used in connection so that the sheets are connected better,but also can effectively prevent the sheet broken when make holes in the sheet and U profile is used to close the end of sheet for waterproof. It is designed for 6m long. Any length can be ordermade. The sheet can be 4mm-16mm thickness.
1) Light weight
2) Keep consistent with the PC sheet in physical performance
3) Best waterproof performance
4) Good weather resistance and UV protection
5) Simply installed
6) Certified by ISO9001:2008 & SGS
7) 10-year guarantee
2) Keep consistent with the PC sheet in physical performance
3) Best waterproof performance
4) Good weather resistance and UV protection
5) Simply installed
6) Certified by ISO9001:2008 & SGS
7) 10-year guarantee
